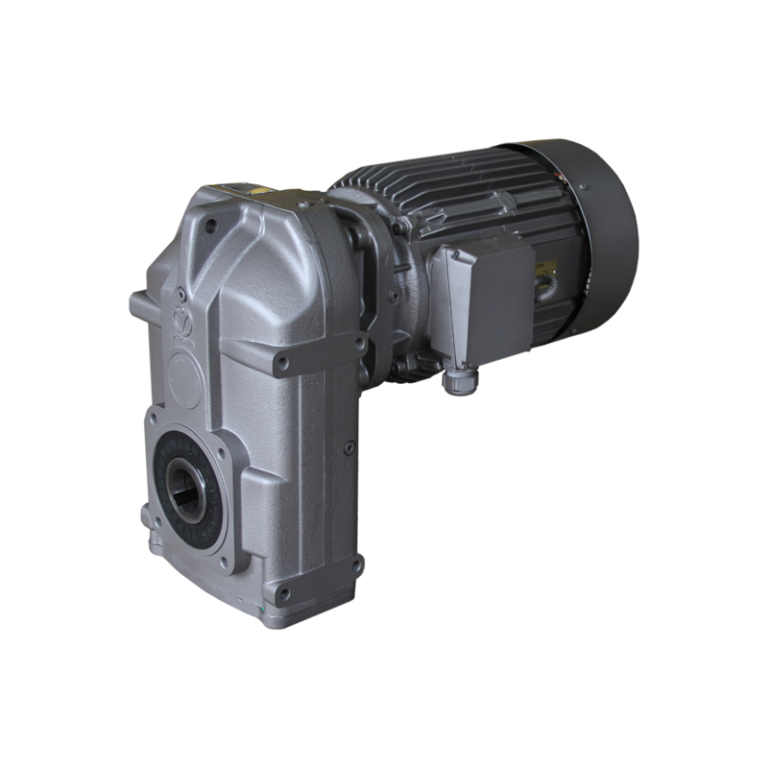

FG Series Parallel Shaft Helical Gearmotors
The FG series helical gearmotor provides the optimal solution for connecting the gearbox to the equipment and allows you to save overall dimensions of the entire structure. Parallel shaft helical gearmotors are manufactured in 8 housing sizes, with nominal torques from 210 N·m to 13,500 N·m and power from 0.12 kW to 55 kW.
Types of input configurations:
• Adapters for IEC motors
• Input shaft
Types of output configurations:
• Flange or foot mounting
• Hollow or solid output shaft
Compatible electric motors:
1. Compact motors SMB and SMR series (with and without brake), energy efficiency class IE3
2. IEC-standard motors (with and without brake, single and two-speed), energy efficiency classes IE3 and IE4
3. ATEX explosion-proof motors
Motor options:
• Thermal protection of windings: bimetallic thermostat and thermistor
• Independent ventilation (servo fan)
• Incremental encoder with complementary output
• Built-in electromagnetic brake
| # | Rated torque | Number of degrees | Gear number | Output speed at 1500 rpm 50Hz | Power at 50Hz | Output shaft (hollow) | Output flange IEC |
| Nm | rpm | kW | mm. | mm. | |||
| FG1 | 210 | 2-stage | 3.64 – 94.16 | 14 – 412 | 0.12 – 1.5 | 25 / 30 | 160 / 200 |
| FG2 | 420 | 2 / 3-stage | 5.39 – 456.76 | 3 – 278 | 0.12 – 4.0 | 30 / 35 | 200 / 250 |
| FG3 | 820 | 2 / 3-stage | 5.50 – 715.02 | 2 – 272 | 0.12 – 9.2 | 40 / 45 | 300 |
| FG4 | 1550 | 2 / 3 / 4-stage | 5.47 – 1946.55 | 0.7 – 274 | 0.12 – 15 | 50 | 350 |
| FG5 | 2900 | 2 / 3 / 4-stage | 5.94 – 3551.48 | 0.40 – 252 | 0.12 – 22 | 60 | 350 |
| FG6 | 4900 | 2 / 3 / 4-stage | 4.03 – 4391.10 | 0.33 – 372 | 0.12 – 55 | 70 | 400 / 450 |
| FG7 | 8200 | 2 / 3 / 4-stage | 3.74 – 4176.00 | 0.35 – 400 | 0.12 – 55 | 90 | 550 |
| FG8 | 13500 | 2 / 3 / 4 / 5th stepped | 16.47 – 8517.82 | 0.16 – 90 | 0.12 – 55 | 100 | 550 |
